THS21 Industrial Metal Detection Systems

The THS 21 Metal Detector Series is a high-sensitivity, highprecision measuring instrument. The data relating to each detection and ejection are stored in an events memory and certify production quality, the inspection itself and programming operations, as well as the periodic functional test phases using standard test samples.

FDA Code Title 21 Part 11 prescribes rigorous criteria for access to programming and computer data protection which have been fully adopted in the CEIA THS 21 Series firmware.

The requirements regarding Security, Integrity and Traceability are therefore satisfied.

The THS 21 Series employs an exclusive Autolearn system for food products which allows optimization of the detection sensitivity to all metals with the maximum speed and precision, equivalent to hundreds of conventional learning transits: results in levels of precision and efficiency never before obtained.

By means of specific signals sent to the transmission and reception chain of the Metal Detector, constant monitoring of the detection characteristics is carried out, with consequent constant compensation for any variations caused by environmental factors. The result is system stability and constancy in detection performance and product effect neutralization.

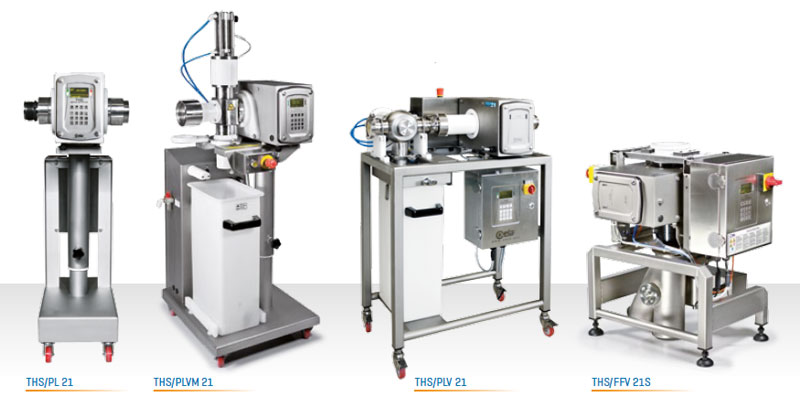

THS/PL 21 series:
FOR LIQUID AND VISCOUS PRODUCTS

  • Standard pipe sizes available to suit all applications
  • AISI 316L stainless steel construction to IP66 and IP69K protection levels (THS/PLMS21)
  • Easy to clean and inspect
  • Minimum installation space required
  • Wide range of flanges available for connection to bagging and clipping machines

THS/PLVM 21 series:
INTEGRATED SYSTEM WITH EJECTION VALVE FOR MEAT

  • Standard pipe sizes available to suit all applications
  • AISI 316L stainless steel construction to IP66 and IP69K protection levels (THS/PLVM MS21)
  • Rapid electrical and mechanical connection system for bagging and clipping machines
  • Wide range of flanges available for connection to bagging and clipping machines

THS/PLV 21 series:
INTEGRATED SYSTEM WITH EJECTION VALVE FOR LIQUID AND VISCOUS PRODUCTS

  • Standard pipe sizes available to suit all applications
  • AISI 316L stainless steel construction
  • Easy to clean and inspect

THS/FFV 21 & THS/FFV 21S series:
INTEGRATED SYSTEM WITH EJECTION VALVE FOR GRANULAR AND POWDER PRODUCTS

  • Standard pipe sizes available to suit all applications
  • AISI 316L stainless steel construction
  • Very compact size
  • Fast and efficient: achieve fast ejection speeds and accuracy, with the minimum amount of rejected product
  • Pipe in antistatic material, certified for contact with food products

THS PH21 Pharmaceutical Metal Detection System

The THS/PH21 Metal Detector Series maintains full compatibility with programming and parameter selection procedures already implemented in earlier versions of the THS/PH21. In addition, there is a new organic graphic display with extremely high contrast (3000:1) and a viewing angle up to 180°, along with an extended alphanumeric keypad for quick keystrokes.

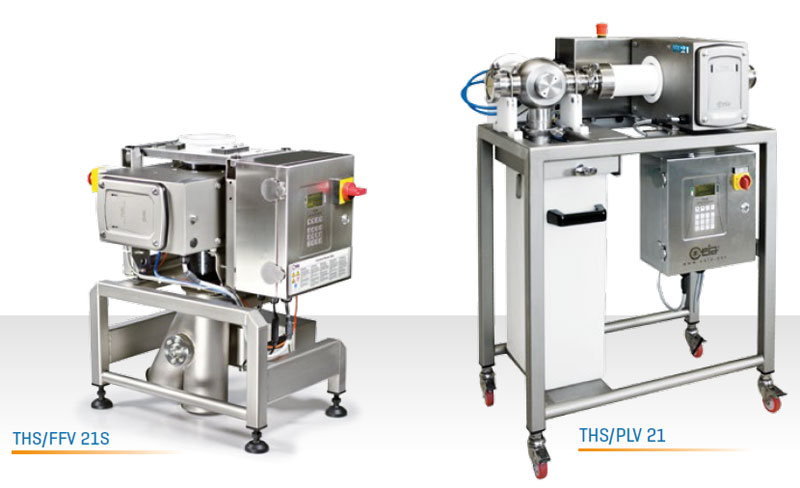

THS/FFV 21 series:
Large Aperture Integrated System for Granular and Powder Products

  • Wide range of standard pipe sizes available to suit all applications
  • Enhanced product throughput rate
  • AISI 316L stainless steel construction
  • Compact size
  • Fast and efficient: achieve fast ejection speeds and accuracy, with the minimum amount of rejected product
  • Pipe in antistatic material, certified for contact with food products

THS/PLV 21 series:
Integrated System for Liquid and Viscous Products

  • Wide range of standard pipe sizes available to suit all applications
  • Full compliance with HACCP criteria
  • AISI 316L stainless steel construction
  • Fast acting reject device for a limited quantity of rejected product
  • Easy to clean and inspect

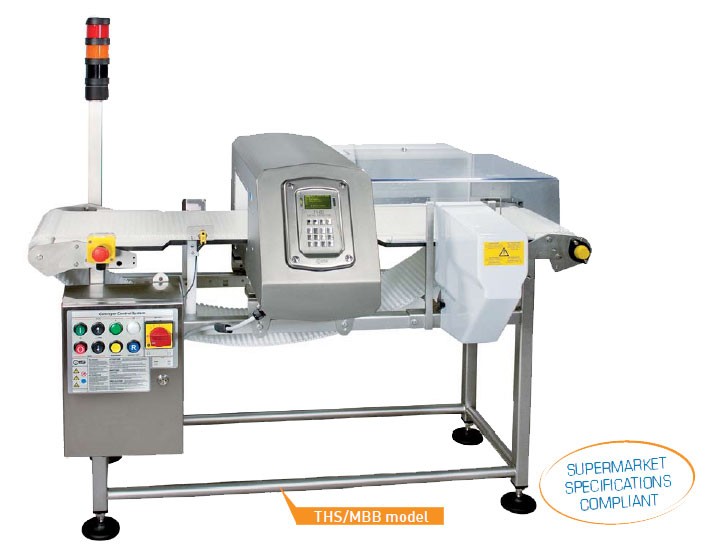

THS/MBB Conveyor Inspection Systems

CEIA THS 21 Conveyor Inspection Systems satisfy the most stringent requirements for functionality, compact construction, accuracy and reliability of response in dealing with accidental contamination in food products.

THS 21 Conveyor Inspection Systems offer total integration between CEIA's high-performance THS 21 Metal Detector and a hygienic structure in stainless steel, equipped with digital control of the speed and of the stages of ejection of non-conforming products.

CEIA's THS 21 are available in a wide range of sizes covering the different application requirements. The supporting structure, the Metal Detector and the belt control box are in stainless steel. The conveyor belt is certified fully compatible with food product handling (FDA/USDA compliant) requirements, as is the protective cover of the ejection area and the container for rejected products.

Product Highlights:

  • Conveyor belt integrated with Metal Detector and ejection system
  • Full compliance with HACCP criteria
  • Digitally-adjustable belt speed
  • High immunity to environmental interference
  • Very high sensitivity to all magnetic and nonmagnetic metals, including stainless steel
  • Multi-spectrum technology available for extreme compensation of the product effect
  • Maximum flexibility: all components are reversible
  • Automatic learning & tracking of product effect
  • Easy to clean and inspect
  • 500 product data memories, selectable by local programming or network software
  • Up to 40 definable users with username and password
